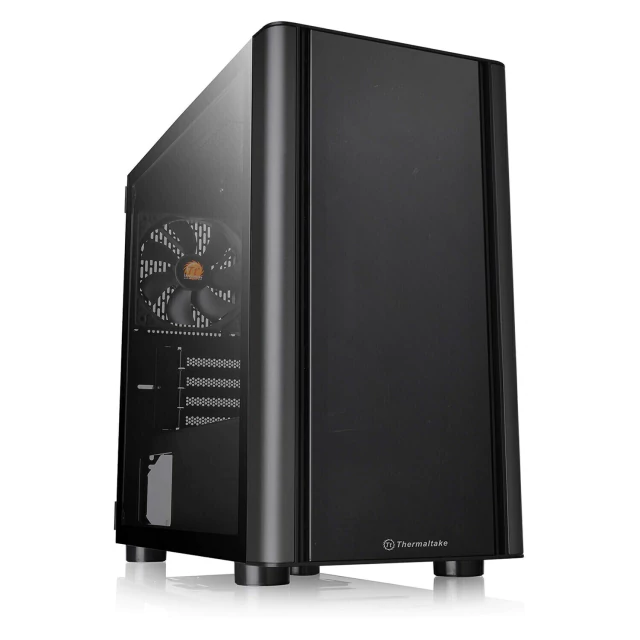

The V150 TG is a micro chassis that comes with one preinstalled 120mm standard rear fan, a power supply cover, and can support up to a standard Micro ATX Motherboard
| P/N |
CA-1R1-00S1WN-00 |
| La serie |
Serie V |
| Modelo |
V150 TG |
| TIPO DE CAJA |
Micro Case |
| DIMENSIONES (AL x AN x PR) |
398 x 208 x 440 mm
(15.67 x 8.19 x 17.32 inch) |
| PESO NETO |
5.45 kg / 12 lbs |
| PANEL LATERAL |
4mm Tempered Glass x 2 (Left & Front) |
| Color |
Exterior & Interior : Black |
| Material |
SPCC |
| SISTEMA DE REFRIGERACIÓN |
Rear (exhaust) :
1 x 120 x 120 x 25 mm fan
(1000rpm, 16dBA) |
| BAHÍAS DE EXPANSIÓN |
2 x 2.5" ; 2 x 3.5” |
| RANURAS DE EXPANSIÓN |
4 |
| PLACAS BASE |
6.7” x 6.7” (Mini ITX), 9.6” x 9.6” (Micro ATX) |
| PUERTOS E/S |

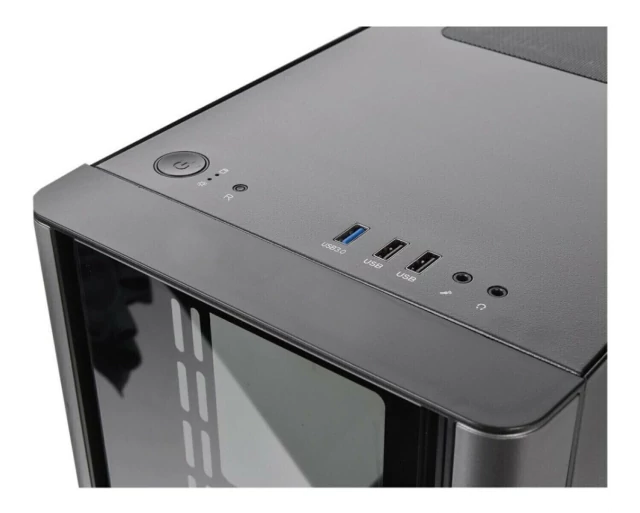

1 x USB 3.0, 2 x USB 2.0, 1 x HD Audio, |
| FUENTE DE ALIMENTACIÓN |
Standard PS2 PSU (optional) |
| COMPATIBILIDAD VENTILADORES |
Front:
2 x 120mm or 1 x 120mm
2 x 140mm or 1 x 140mm
Top:
1 x 120mm, 1 x 140mm,
Rear:
1 x 120mm |
| COMPATIBILIDAD RADIADORES |
Front:
1 x 240mm or 1 x 120mm
1 x 280mm or 1 x 140mm
Rear:
1 x 120mm |
| LIMITACIONES |
CPU cooler height limitation: 155mm
VGA length limitation: 350mm(Without Front Fan)
PSU length limitation: 220mm |
